Outdoor Guidance Display
IP65-rated outdoor LED guidance panel at open car park entrances, showing total capacity and directional information.
What does the Outdoor Guidance Display do?
Multi-line outdoor LED guidance panel that presents car park occupancy status to visitors at facility entrances.
Outdoor LED Guidance Panels display car park occupancy status to visitors at facility entrances. Positioned at the entrances of shopping centres, hospitals, business parks, universities and similar high-traffic facilities, they guide vehicles to available floors and sections. They are manufactured in multi-line configurations to show available spaces in each section of the facility.

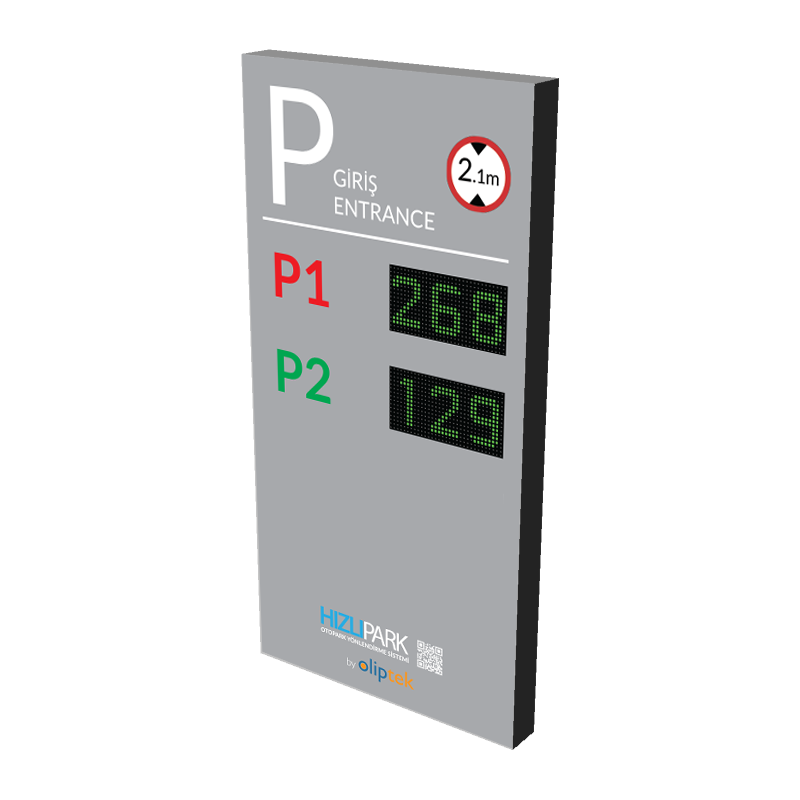

Multi-Line Configuration
Separate row for each section
Shopping Centres, Hospitals, Business Parks
Suitable for high-density facilities
RS485 / TCP-IP / Wi-Fi
Multiple communication methods
-40°C / +80°C
Wide operating temperature range
Specifications
The following specifications apply per row.
| Operating Voltage | DC 24V |
|---|---|
| Current | 30 mA |
| Power | 0.72 W |
| Communication Method | RS485, TCP/IP, Wi-Fi |
| Sensor Count | 40–60 pcs |
| Operating Temperature | -40°C ~ +80°C |
